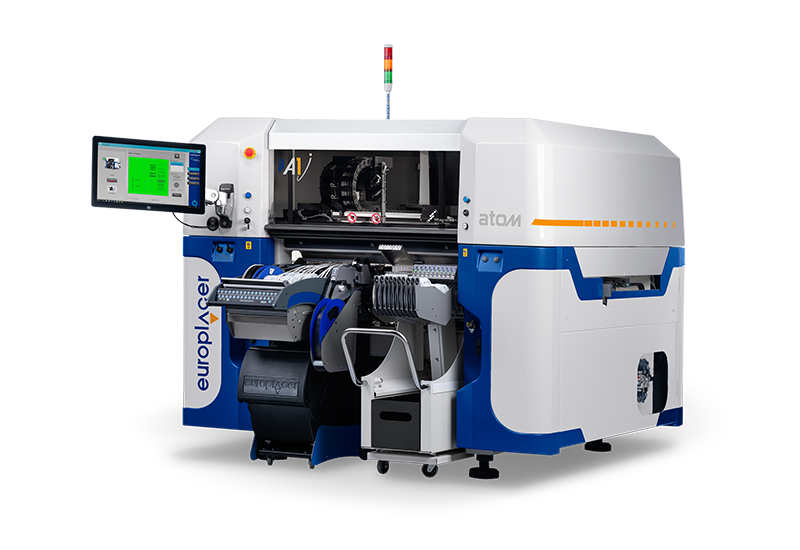

ATOM ii-A

The ATOM ii-A1 pick & place offers unparalleled flexibility on a wide range of components. The ATOM model differs from the INEO for its compactness and smaller size. A “Tornado” turret head with up to twelve pickup nozzles, 162 8mm feeders and the ability to handle cards up to 1 metre make it the ideal choice for those who don’t have much space but don’t want to miss the opportunity to enter the EUROPLACER world.

Specification

Modello	ATOM ii-A
Component Range	01005 to 50mm x 50mm
(With fixed camera)	99mm x 99mm*
Max Component Height	34mm (31mm with 12 nozzles)
Feeder: Tapes	da 4mm fino a 104mm
Feeder: Capacity	162 posizioni x 8mm
Feeder: Internal	2 x Matrix trays
Placement Heads	2 x 8 o 12 nozzle Tornado head
Max PCB Size	1070mm x 715mm
Max PCB Size	14,000cph (15,390 with 12 nozzles)

Watch the video of the Atom

Other Products

INEO ii-N2

High-mix SMT production. The iineo ii-N2 pick & place is the perfect combination of performance and flexibility. It offers a large load capacity (264 x 8mm) and unparalleled performance. The INEO ii-N2 model is equipped with 2 “Tornado” revolver heads and a range of accessories ensure the processing of any request.

INEO ii-N1

Best In Class For Prototyping. With the ii-N1 in your production line, you never have to say no. The platform is built on Europlacer’s unique multi core processing technology which is designed to deal with all surface mount assembly demands, with no compromise. With the introduction of the elegant ii-N1 machine, you will increase productivity and deliver premium performance for any assembly application.
